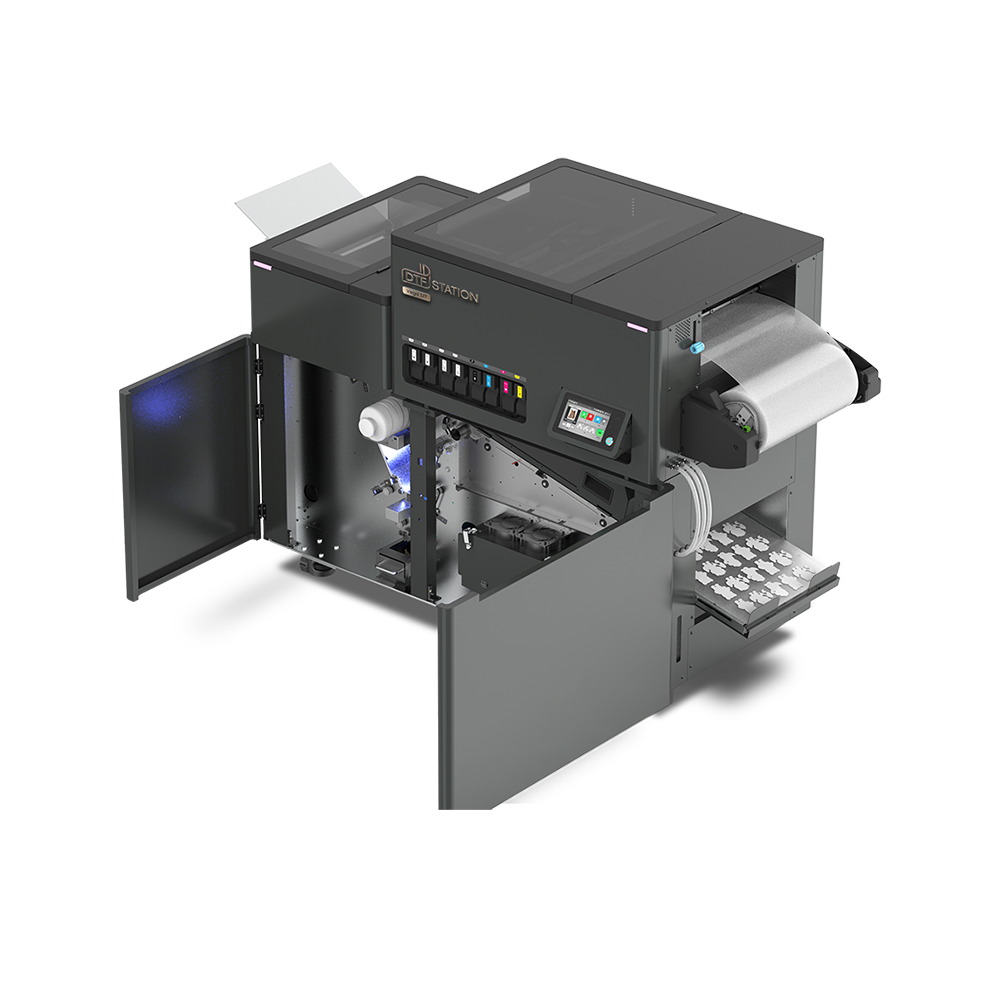

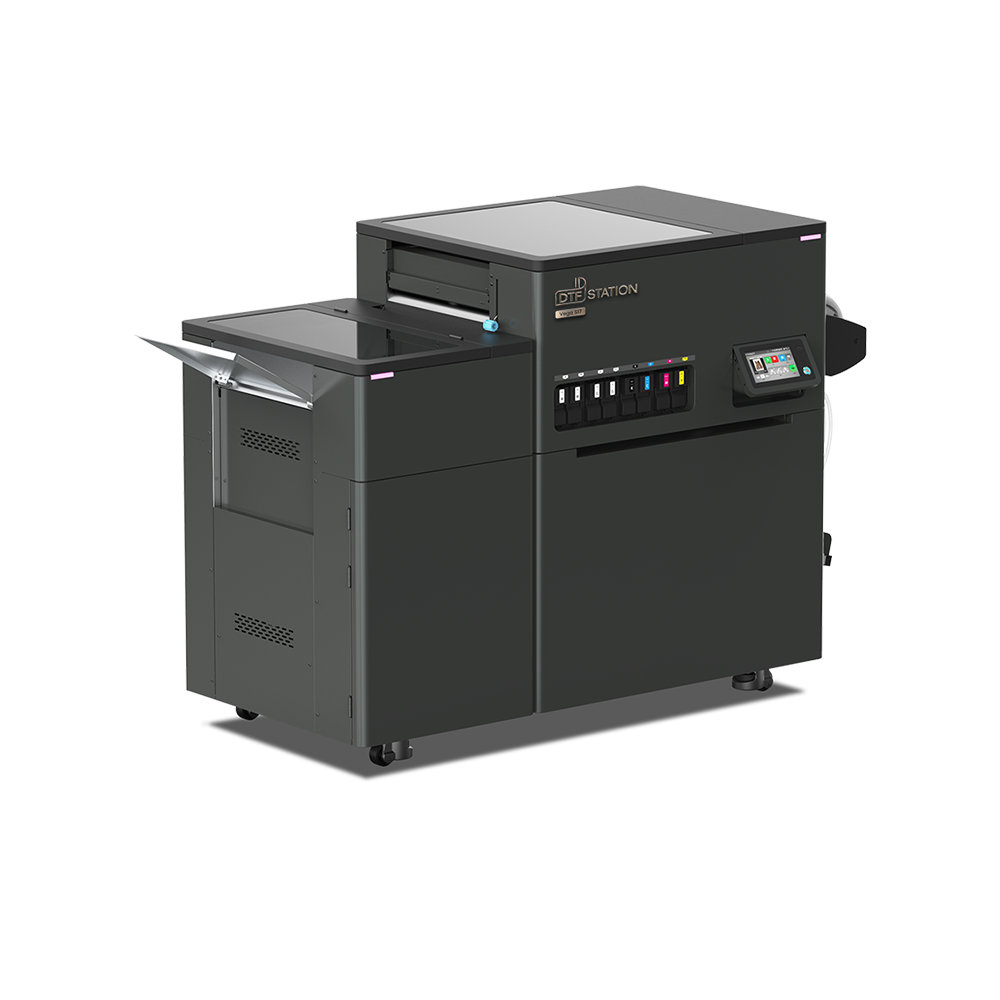

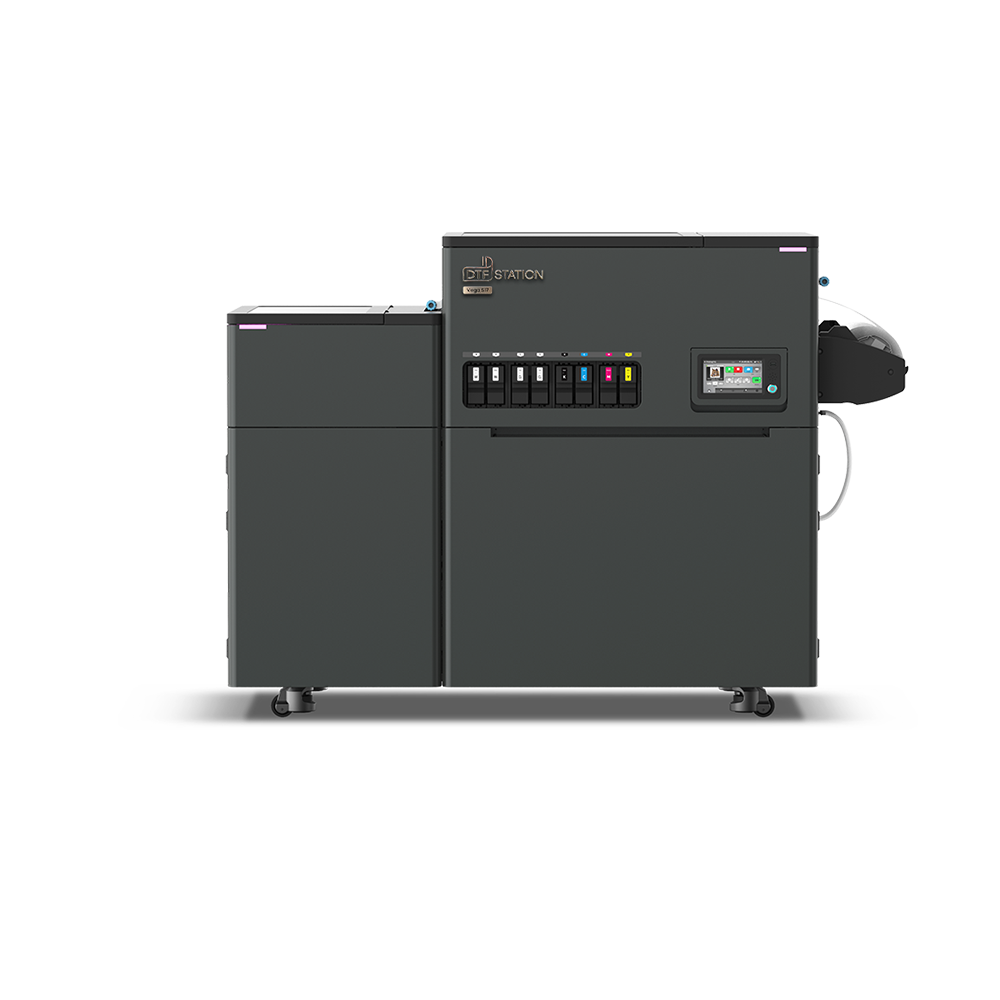

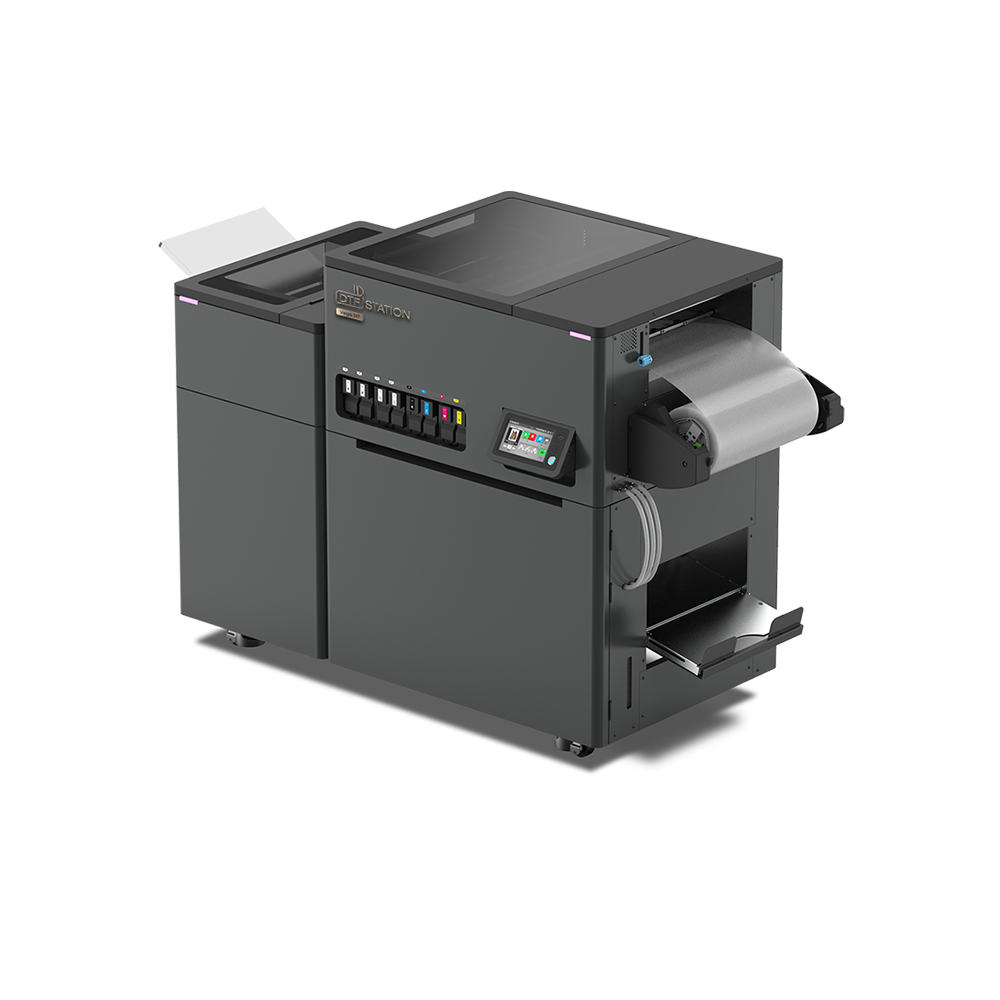

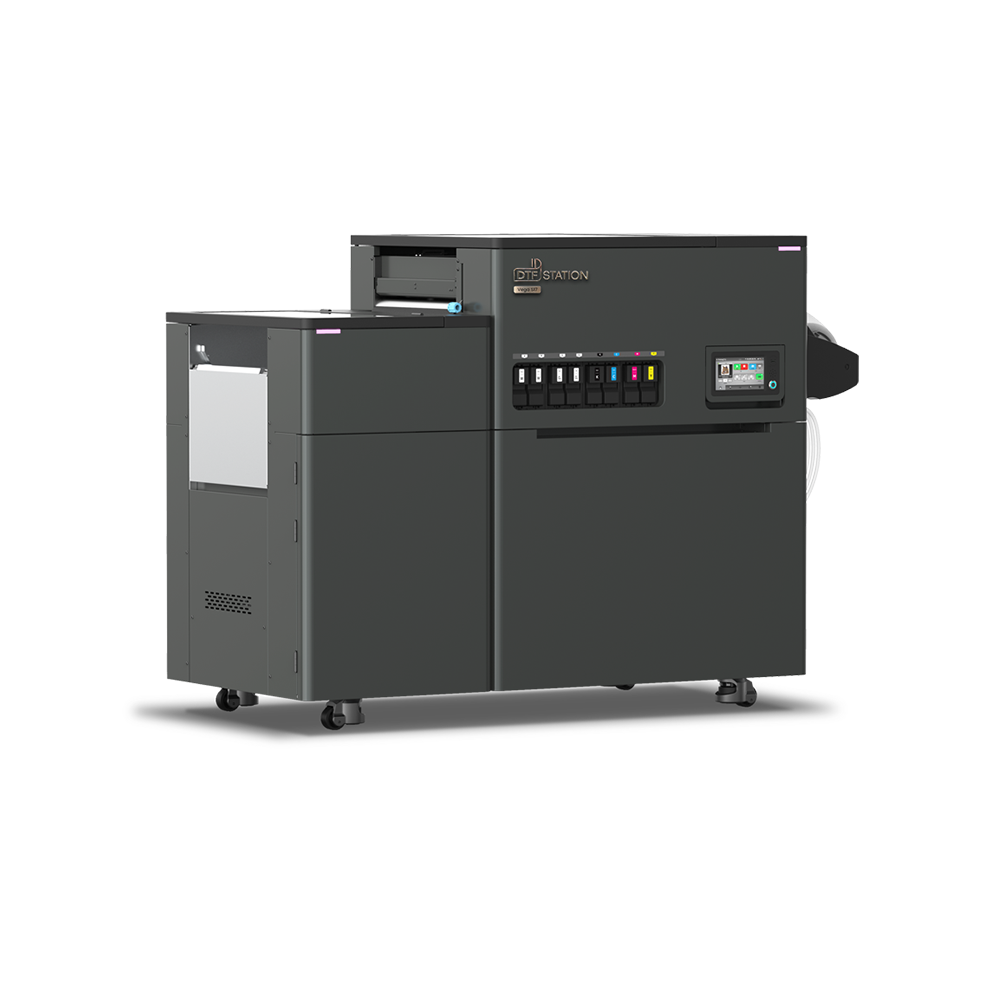

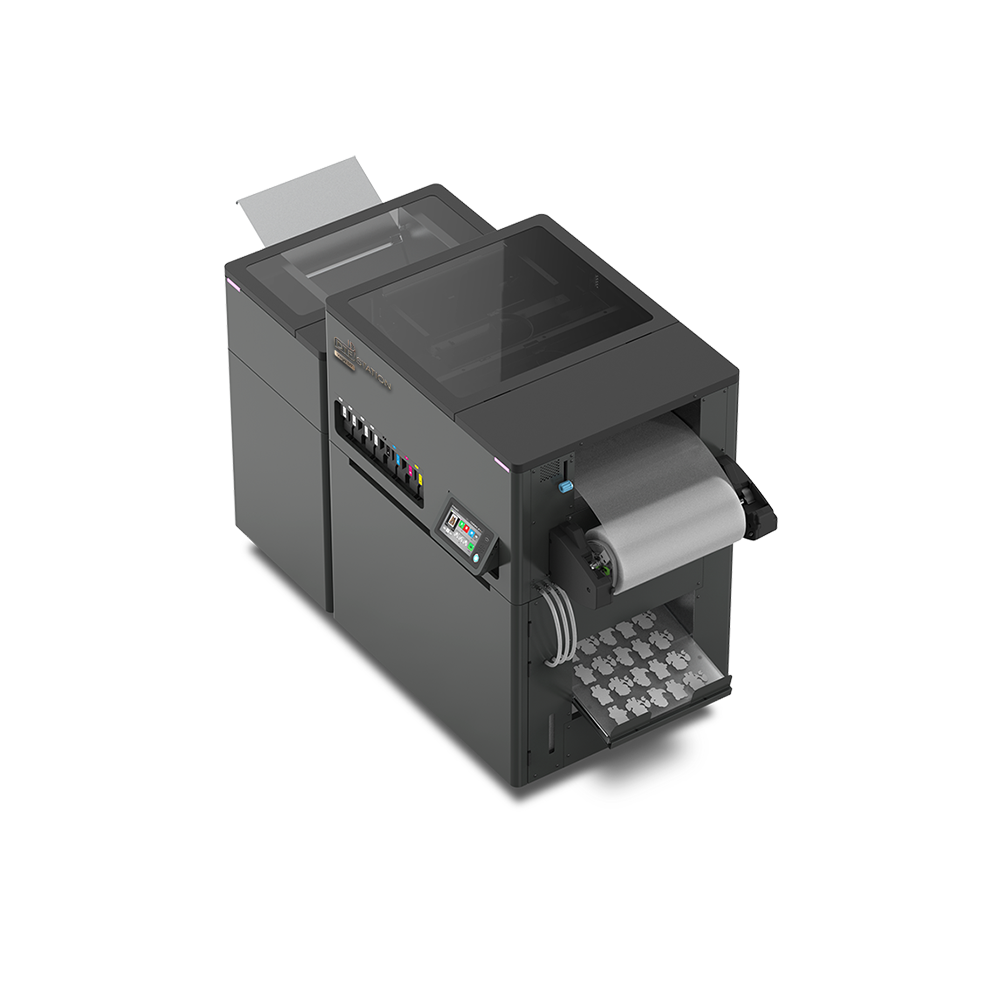

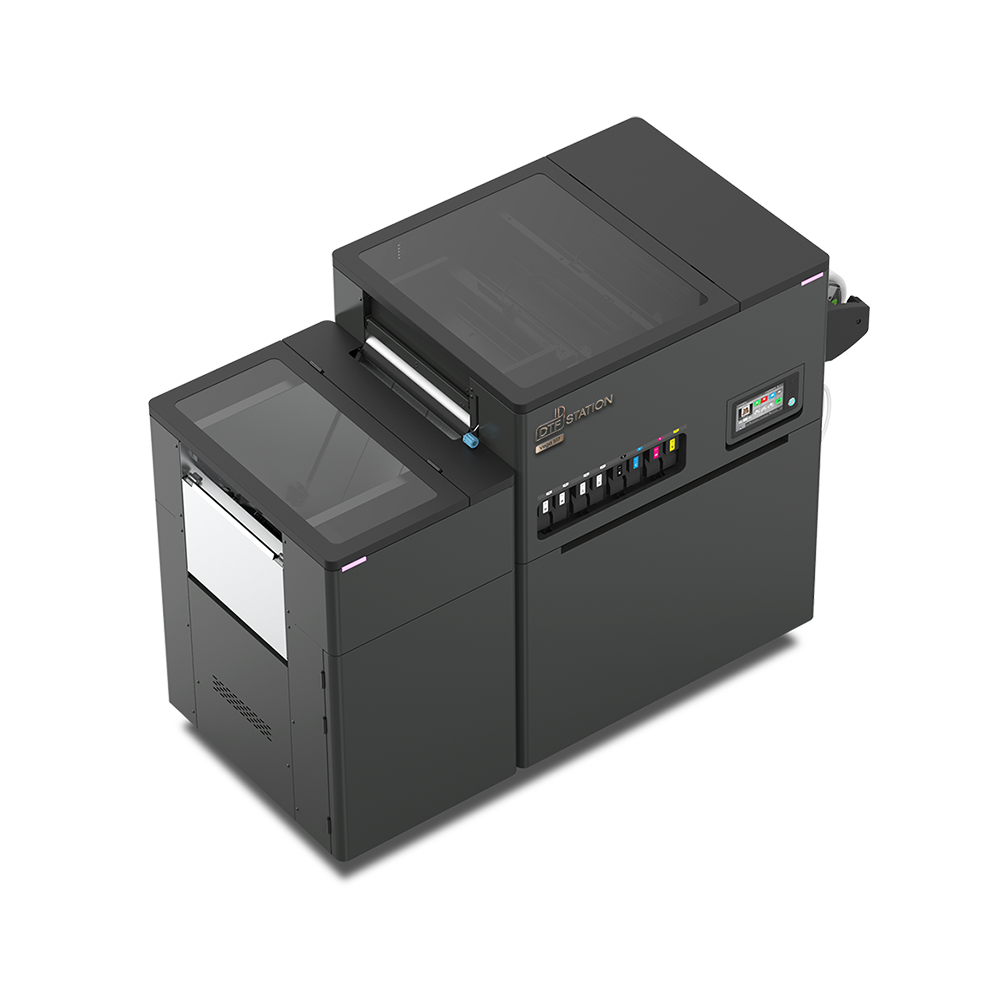

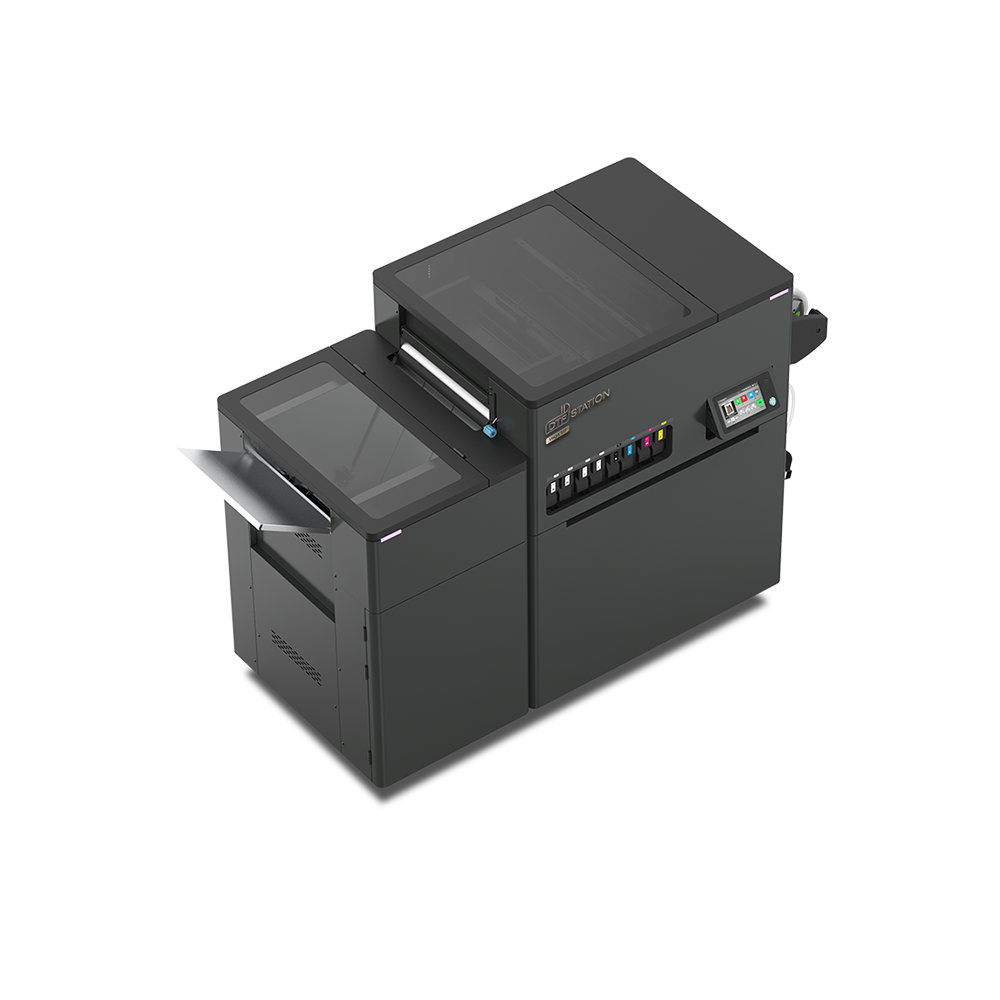

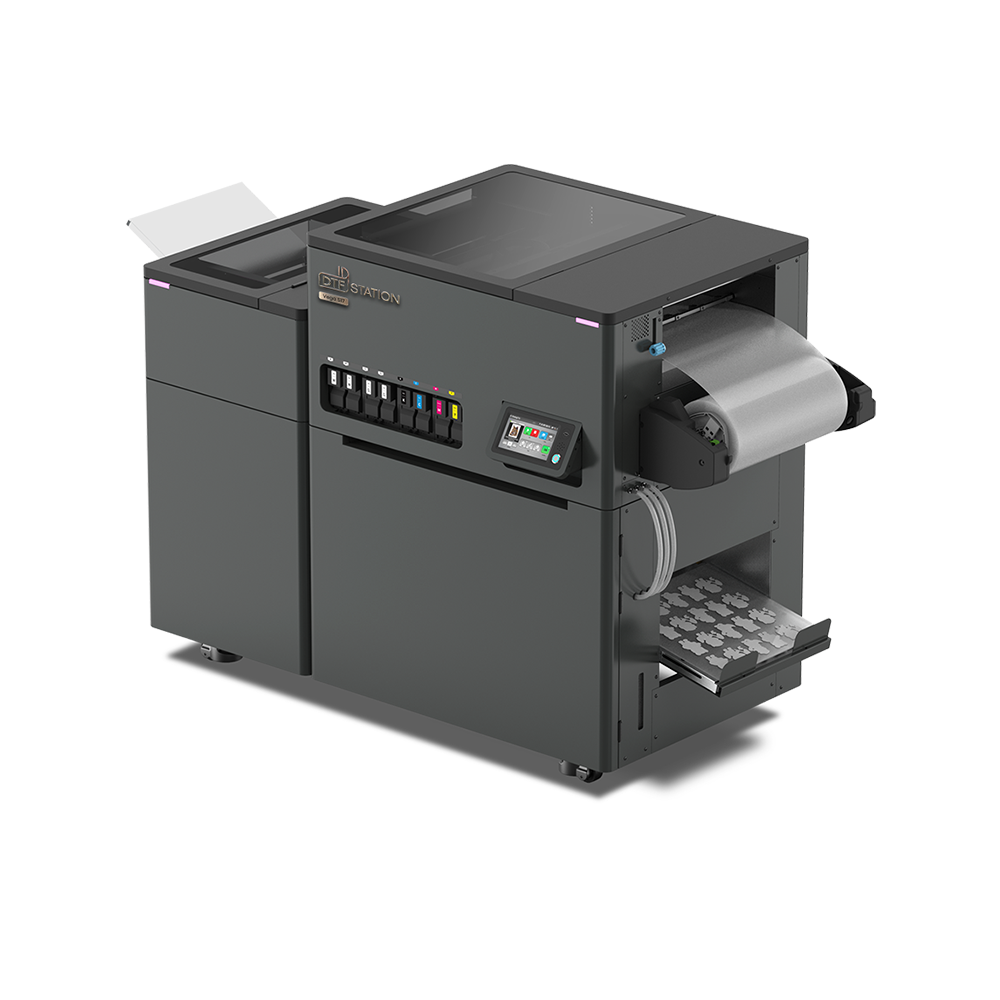

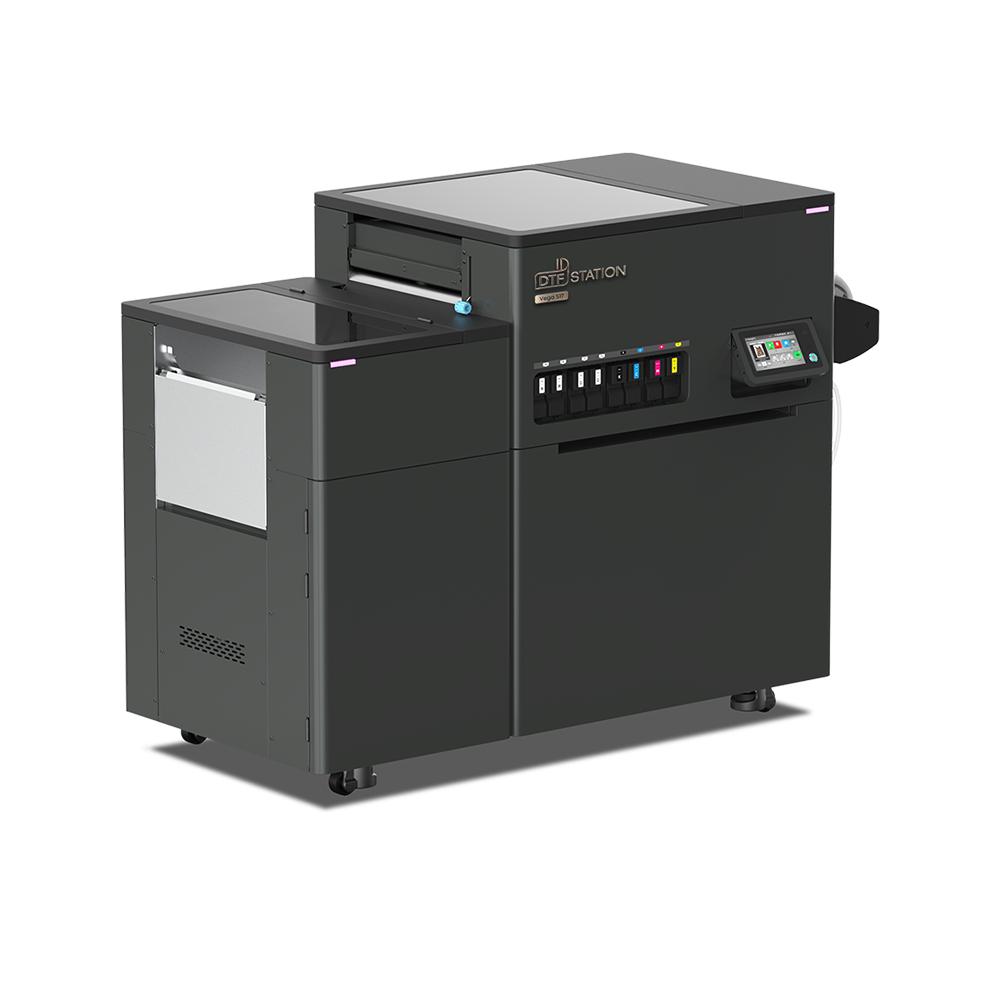

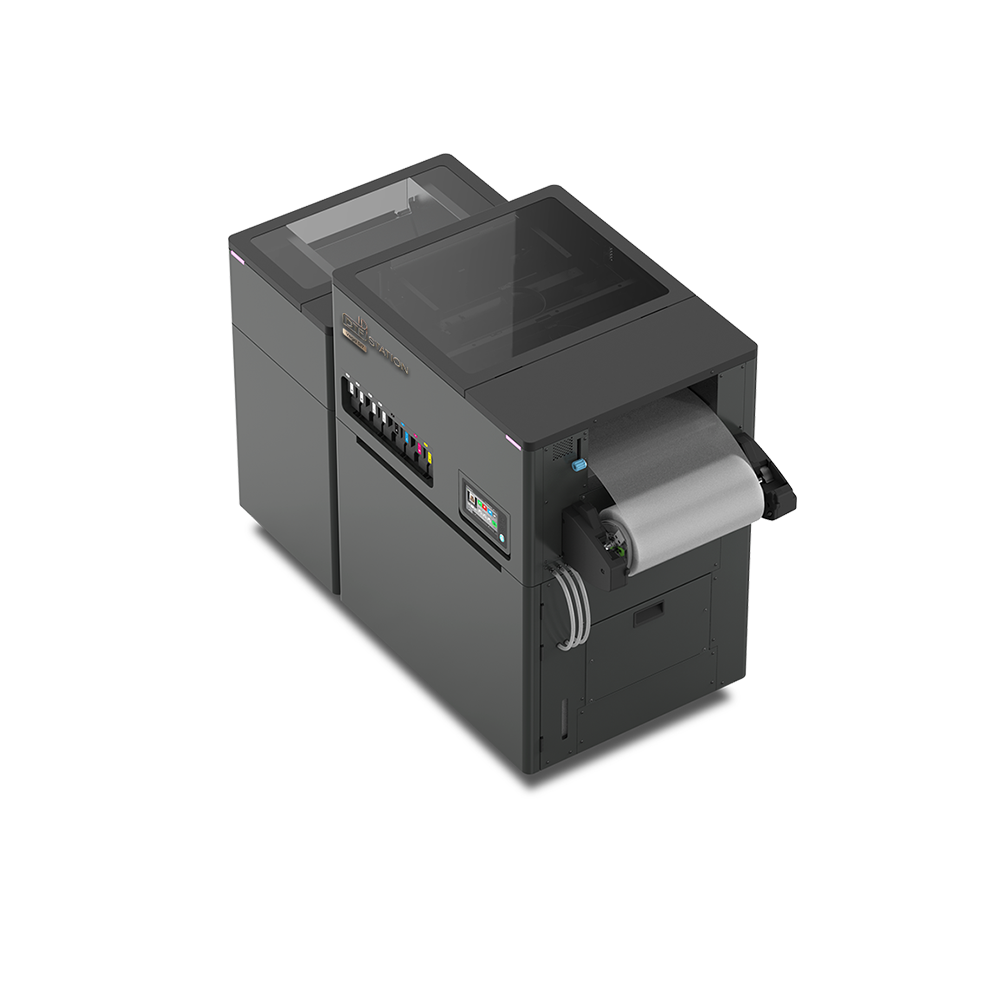

DTF Station Vega S17 17" DTF Printer Production System with Supplies

Take your DTF production to the next level with the DTF Station Vega S17, an all-in-one production system designed to automate the entire transfer printing process. Combining printing, powder application, curing, cutting, and stacking into one compact machine, the Vega S17 streamlines your workflow from artwork to press-ready transfers with minimal operator intervention. Featuring industrial Ricoh printheads, a 17" film width, and a fully integrated finishing station, it's an ideal solution for growing apparel businesses and professional print shops.

Built for efficiency and reliable production, the Vega S17 features automatic white ink circulation, a sealed adhesive powder system, four-zone curing, and integrated three-stage filtration. Its automatic cutter and 100-sheet stacker eliminate repetitive manual steps, while the compact stacked design saves valuable floor space. With intelligent touchscreen controls and automated maintenance features, the Vega S17 makes professional DTF transfer production easier to manage than ever.

Features and Benefits:

• All-in-one production system automatically prints, powders, cures, cuts, and stacks DTF transfers
• Industrial Ricoh printheads with dual-carriage architecture for consistent print quality
• 17" film compatibility with a maximum printable image width of 15.5"
• Sealed cartridge-based adhesive powder system for automatic application and minimal powder handling
• Four-zone enclosed curing system with automatic temperature control
• Built-in three-stage filtration with HEPA and activated carbon, eliminating the need for external exhaust ducting according to the manufacturer
• Automatic inline cutter produces transfer sheets from 10" to 19.7" in length
• Integrated stacker holds up to 100 finished transfer sheets
• Automatic white ink circulation, scheduled printhead cleaning, and wet capping to reduce maintenance demands
• Motorized film unwinder with automatic tension control for reliable media feeding
• Integrated touchscreen with maintenance tracking, system diagnostics, and software updates
• Compact stacked design minimizes floor space requirements

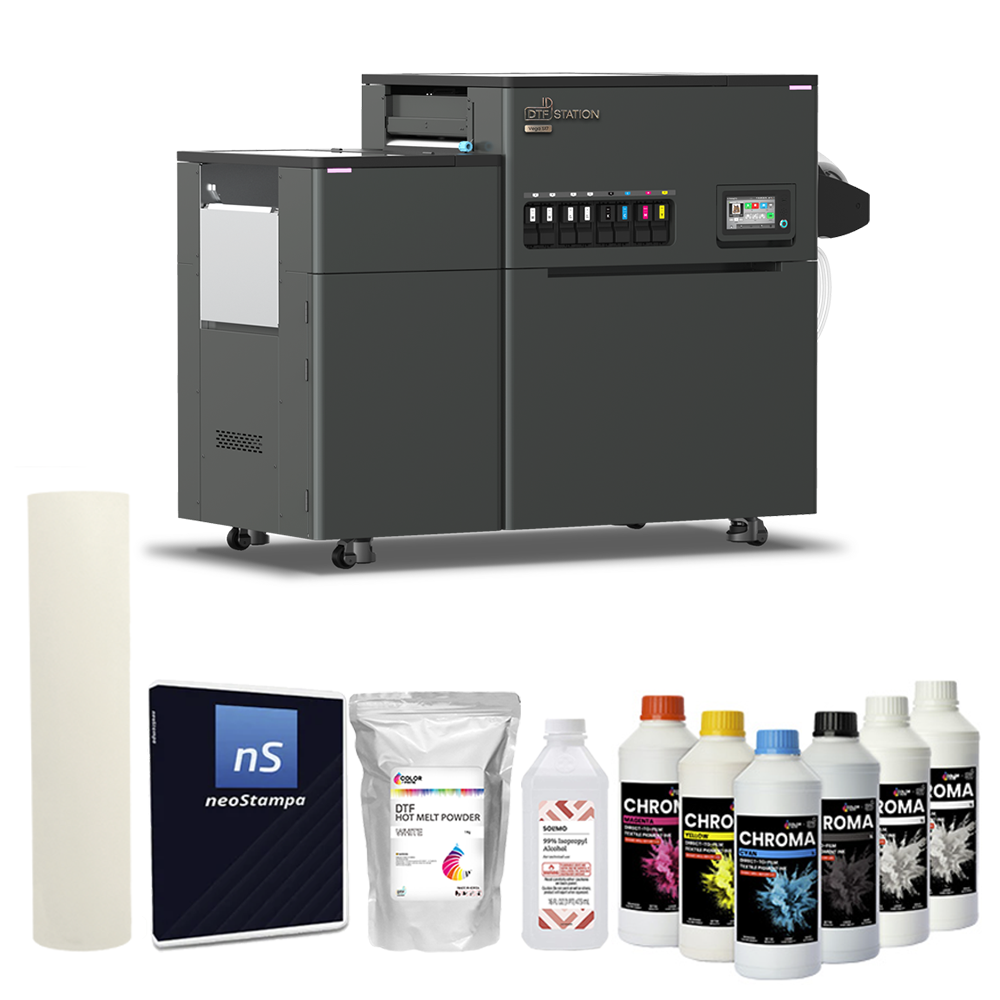

What's Included:

• DTF Station Vega S17 DTF Printer
• DTF Station Glue Station for Vega S17
• Color Prime DTF Powder - 1 kg
• Color Prime Chroma DTF Ink - Cyan (500 ml)
• Color Prime Chroma DTF Ink - Magenta (500 ml)
• Color Prime Chroma DTF Ink - Yellow (500 ml)
• Color Prime Chroma DTF Ink - Black (500 ml)
• Color Prime Chroma DTF Ink - White (500 ml)
• DTF Cleaning Fluid - 500 ml
• DTF Storage Fluid - 200 ml
• Color Prime DTF Film Glide Pro - 17" x 109 yd Roll
• neoStampa RIP Software - Delta DTF Station Edition

Not Included, but Also Needed:

• Heat Press (used to apply finished transfers to garments - 16" x 20" recommended)
• Computer compatible with neoStampa RIP software
• Proper electrical connections for both machine sections
• Climate-controlled workspace to maintain recommended operating temperature and humidity

Benefits of Direct to Film Transfers:

	Any Color, Any Material: DTF transfers can be applied to a wide variety of compatible fabrics, regardless of color. Decorate cotton, polyester, nylon, denim, and more with vibrant, full-color designs.
	Easy to Use: Heat and pressure are all you need to apply your finished transfers. No pretreatment or weeding required. Transfers can also be produced in advance for customers to apply themselves.
	Durable: Properly produced and applied DTF transfers offer excellent wash durability, helping designs maintain their vibrant colors through repeated washing and wear.
	Soft and Stretchable: DTF transfers deliver a comfortable feel and flexibility, making them ideal for everyday apparel and garments that need to move with the wearer.
	Long Shelf Life: With proper storage, DTF transfers can last for a year or longer. Prepare popular designs ahead of time and heat press them when orders arrive.

Printer Specifications:

• Machine Type: All-in-One DTF Production System
• Film Width: 17" (432 mm)
• Maximum Printing Width: 15.5" (394 mm)
• Maximum Image Length: Approximately 19"
• Transfer Sheet Length: 10" - 19.7"
• Printheads: Industrial Ricoh, Stainless-Steel Face
• Print Resolution: 600 x 600 dpi
• Ink Configuration: 4 Color, 2 White, 2 Cleaning Channels
• Ink Type: Color Prime Chroma Water-Based Pigment Ink
• RIP Software: neoStampa
• Powder Application: Automatic Sealed-Cartridge System
• Curing: Enclosed Conveyor with 4 Independently Controlled Heating Zones
• Default Curing Temperature: 320°F (160°C)
• Filtration: Integrated De-Mist, Medium, HEPA and Activated Carbon
• Cutting: Automatic Inline Cutter (Approximately 0.8 Seconds per Cut)
• Stacker Capacity: Up to 100 Sheets
• Connectivity: Ethernet, USB-A 2.0, Wi-Fi Available
• Noise Level: 67 dB(A) or Less
• Installed Footprint: 67.1"W x 31.4"D
• Combined Weight: Approximately 626 lbs
• Power Requirements: 120V, 50/60Hz - Separate Circuits Required for Printer and Finishing Station (Confirm Before Installation)
• Operating Temperature: 59°F - 90°F (77°F or Below Recommended)
• Operating Humidity: 45% - 80% RH (45% - 70% Recommended)

WARNING: Always operate DTF equipment in an appropriate commercial workspace and follow all manufacturer safety instructions. Although the Vega S17 features an enclosed powder application and curing system with integrated filtration, proper workplace air quality and safe handling practices remain essential. Use appropriate personal protective equipment when handling uncured adhesive powder, inks, cleaning fluids, and other consumables. Avoid inhalation of airborne powder or fumes. Follow applicable workplace ventilation requirements and manufacturer instructions for filter maintenance. The use of DTF equipment, chemicals, powders, inks, and accessories is at the sole risk of the user.

IMPORTANT MAINTENANCE INFORMATION: DTF printers require regular operation and maintenance to maintain print quality and prevent clogs. The Vega S17 features automated white ink circulation, scheduled head cleaning, and wet capping to help protect its printheads during idle periods. These systems do not eliminate the need for operator inspections, nozzle checks, cleaning, and other manufacturer-recommended maintenance. For extended shutdowns of two weeks or longer, follow the manufacturer's storage fluid and shutdown procedures.

DTF Station Vega S17 Product Information and Specifications

The HPN MyExpert Support guarantee is our commitment to Lifetime Technical Support. No matter where you are in your product's life cycle, we will be here to provide support for your product and make sure you are fully covered.

Our MyExpert Support will always be there for you so you can purchase with confidence!

In addition, DTF Station, the manufacturer, provides warranty coverage subject to its applicable equipment and printhead warranty policies. For warranty claims, we may need to involve the official DTF Station team depending on the reported issue. Use of non-approved inks, film, or other supplies may affect warranty eligibility. Terms & Conditions apply. View the DTF Station printhead warranty policy for additional details.
